Weigh hopper

Norma-S
Norma-S

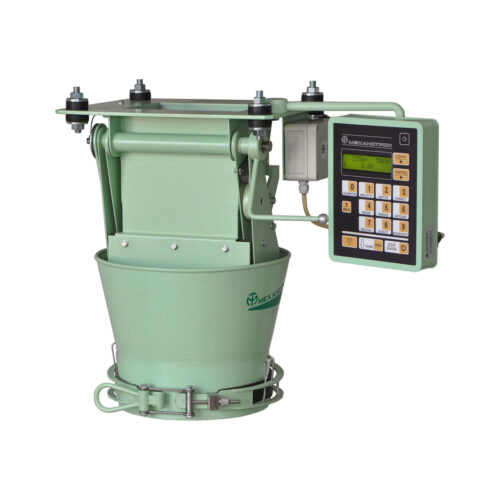

Norma-SR

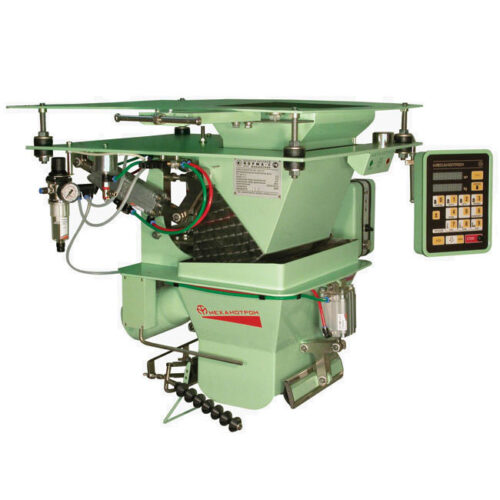

Norma-SL

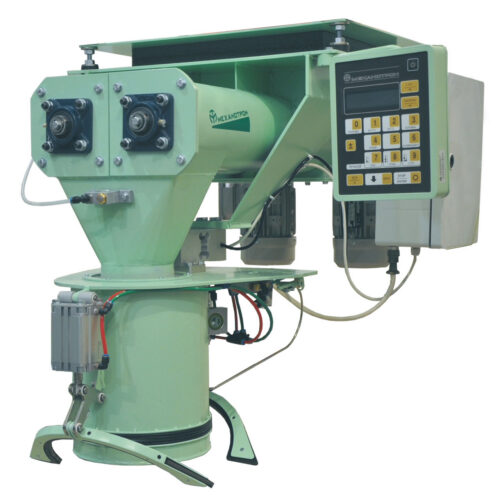

Norma-SB

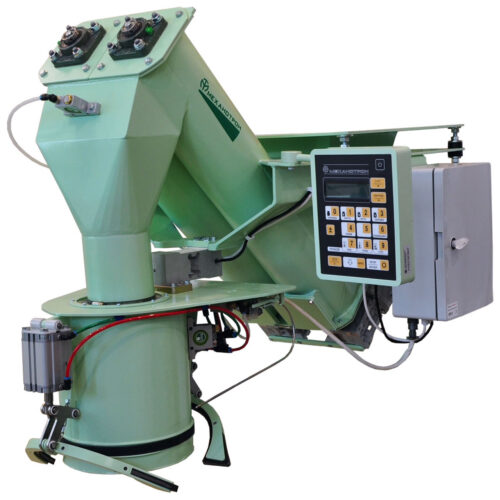

Norma-SB1

Purpose and scope of application

NORMA-S series weigh feeders are designed for filling open bags with bulk products with specified accuracy.

The design of the feeders provides for

  • Automatic gross or net dosing.
  • High productivity.
  • Data storage in memory when the power supply is turned off.
  • Data transfer to a remote computer via RS485 interface, ModBus RTU protocol.
  • No human influence on the packaging process.

NORMA-S series weighing dispensers monitor (count and display) the number of filled bags from the moment specified by the operator (resettable counter) and display the weight of the product in a specific dispensed bag, as well as the total number of bags already shipped by the dispenser since the start of its operation (permanent counter).

The dispensers are powered by an AC mains supply with a voltage of 220V, with a power consumption of no more than 15W.

Workpiece type Dosage range,

kg

 Capability,

dose/hour

 Inaccuracy,

%
Norma-S 5 – 15
15 – 50		  500
450 – 500		 0,37
0,1
Norma-SR 2 – 10
10 – 15
15 – 50		 270 0,75
37,5
0,1
Norma-SB 5 – 15
15 – 50		 200 – 240 0,5
0,2
Norma-SB1 5 – 15
15 – 50		 200 – 240 0,5
0,2
Norma-SL 5 – 15
15 – 50		 500
450 – 500		 0,5
0,2
