Packaging of bulk products in open-type bags – grains (wheat, corn, buckwheat, barley, millet), seeds, cereals, rapeseed, soybeans, sunflower and cotton seeds, sugar, salt, fertilizers, pellets, and other loose and granular products.
Automatic gross or net dosing.
High productivity.
Up to 8 preset dose values can be stored in memory.
Continuous counting and indication of the number of bags per dose from the start of the dispenser operation (permanent counter).
Counting and indication of the number of bags dispensed from a specified time point per dose (replacement counter).
Weight control according to the indicator readings.
Indication of limit switch activation.
Data storage in memory when the power supply is turned off.
Data transfer to a remote computer via RS485 interface, ModBus RTU protocol.
The dispensers are easy to operate and maintain.

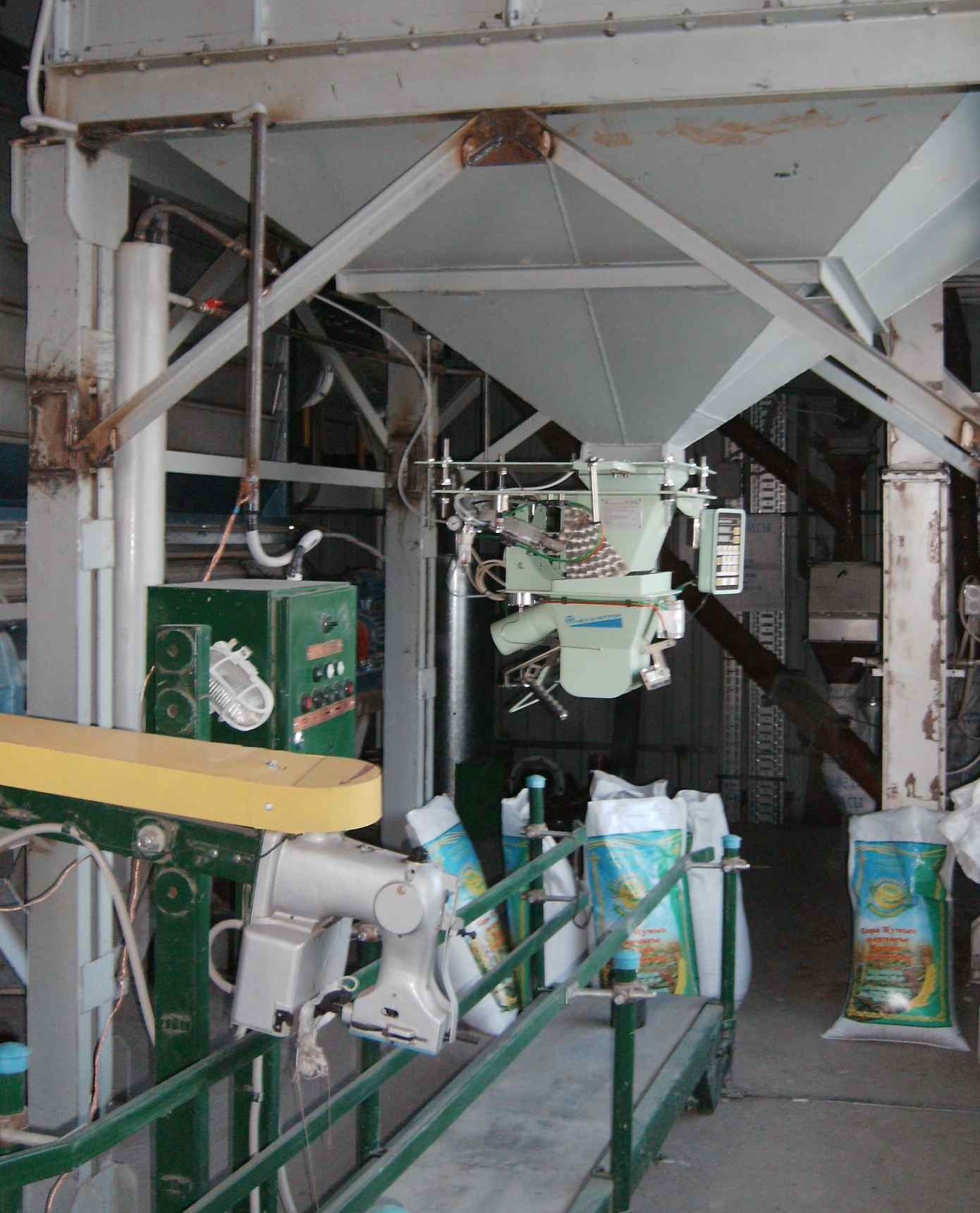

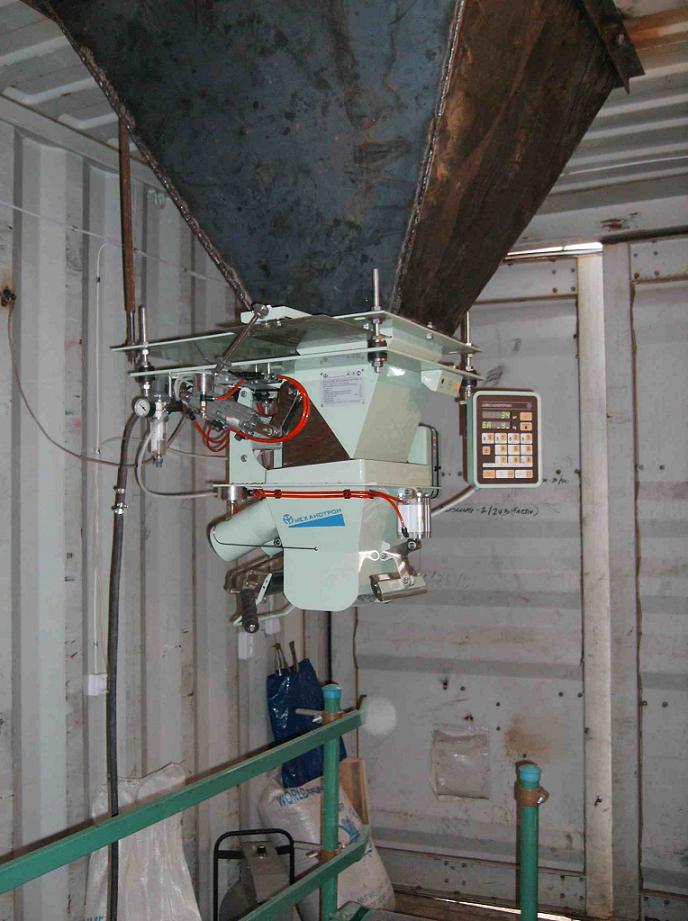

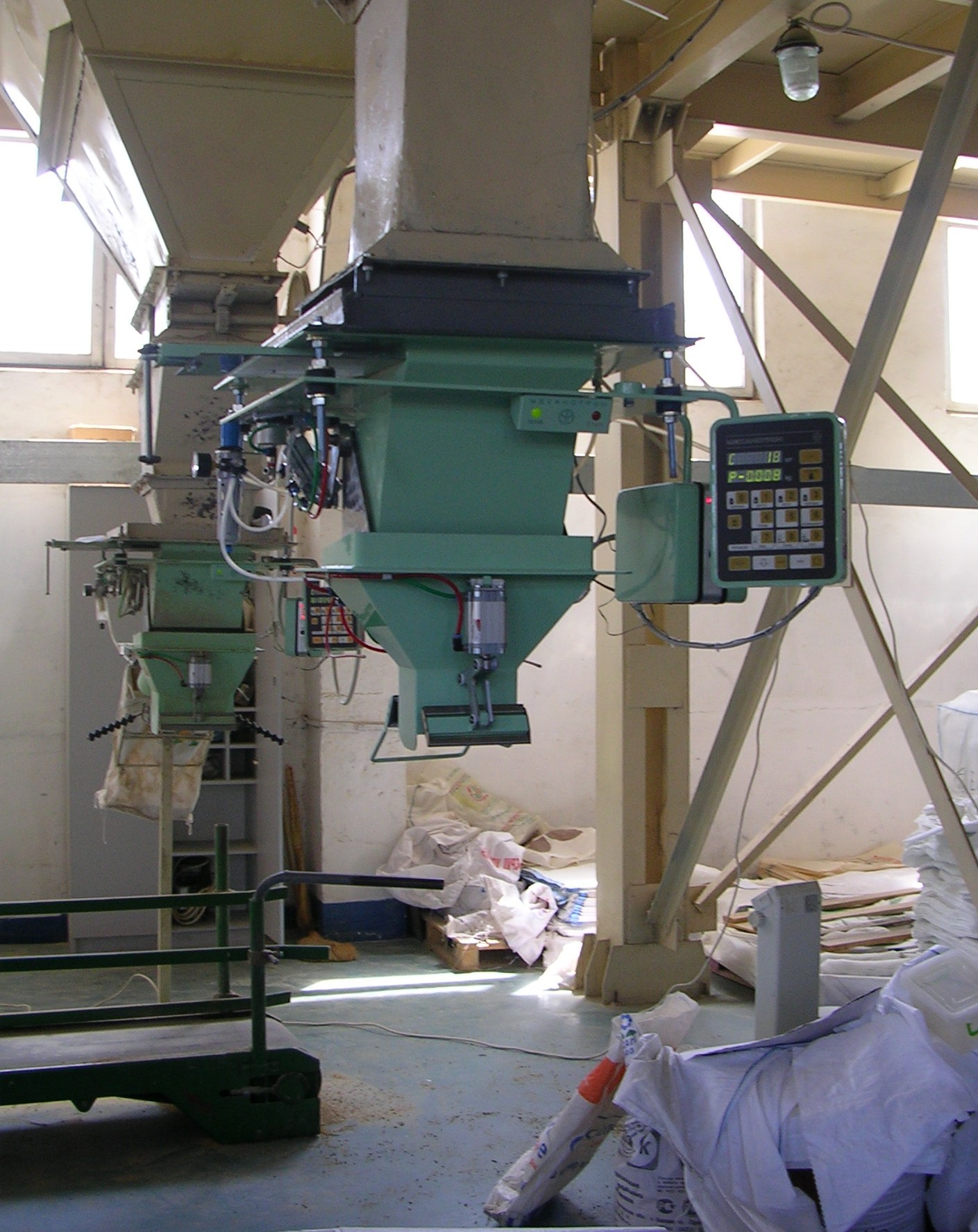

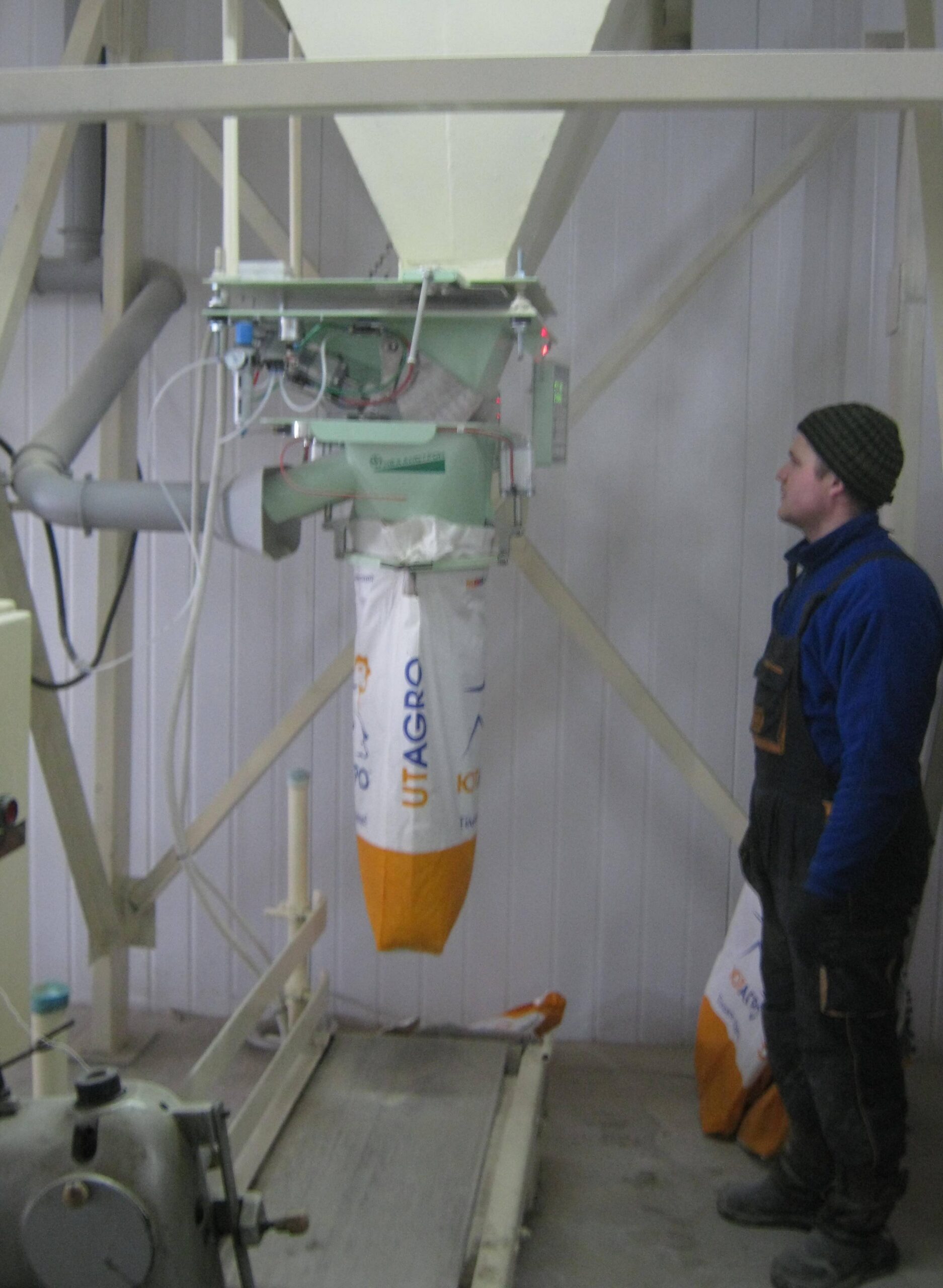

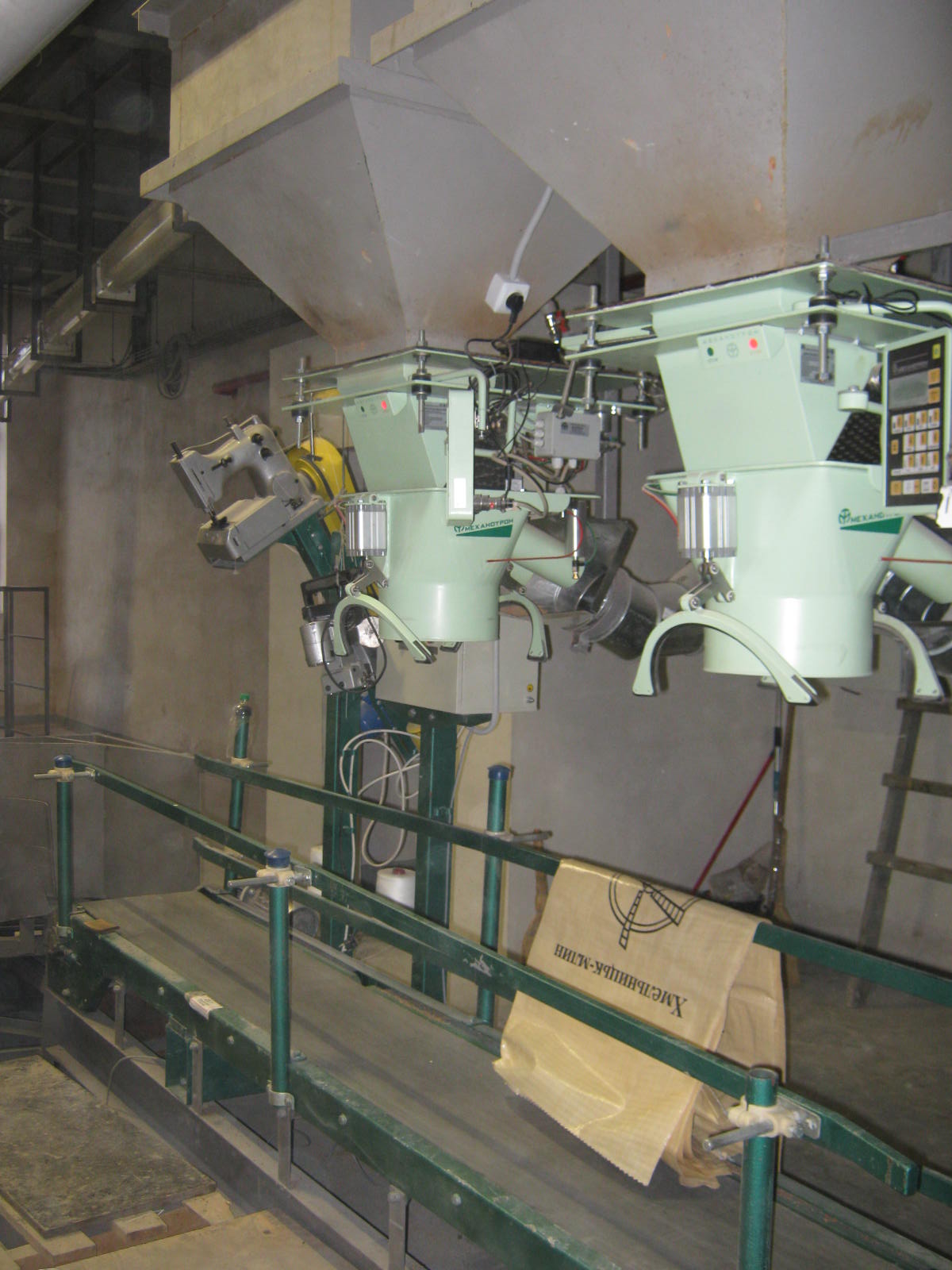

The dispensers are suspended from the storage hopper.
The dispenser is designed to ensure dust removal and disposal.
The company performs commissioning, warranty, and post-warranty service.
The dispensers are installed at more than six hundred enterprises in Ukraine and abroad.
| Hopper’s capability, dose/hour | 500 |
| Limits of dosing, kg | 5-50 |
Inaccuracy of dosing according to DSTU OIML R61-1:2008
|
0,37% |
| Width of the sack, no less, m | 0,455 (0,25*) |
| Height with the hinged 50kg sack, m | 1,55 |
| Hopper’s mass, no more, kg | 70 |
| Withdrawal of the compressed air under pressure of 4 atmospheres, no more than, m3/3/hour | 1.0 |
| Power consumption from the monophase circuit 220 V, no more, W | 15 |
* in case of SM hopper neck usage
