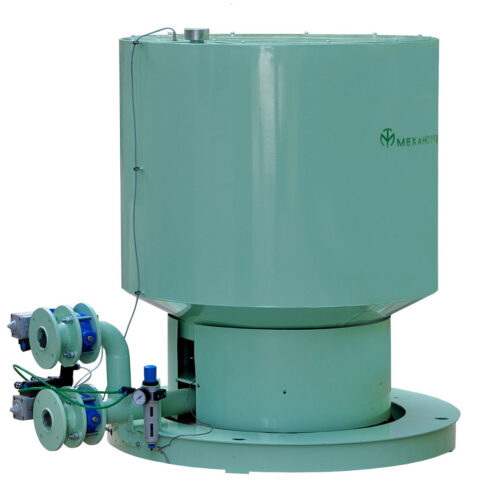

Scales for weighing liquids

Purpose and scope of application

• ensuring portion weighing and total accounting of liquid products;
• determining the weight during continuous product flow (forced feed) or during sampling from a storage tank (gravity flow) with the possibility of adjusting the feed rate;
• sampling of the required amount of product (filling containers, loading vehicles).

The scales can be used in various industries and have a margin of error of 0.1%.

The design of the scales provides for:

• portion weighing of the product at a set capacity;
• programmed weighing of the product dose;
• indication of the total weight of the product that has passed through the scales since the start of operation;
• indication of the total weight of the product that has passed through the scales since a specified point in time;
• indication of direct and reverse weight countdown in “Programmed weighing” mode;
• indication of the number of doses in “Programmed weighing” mode;
• indication of portion weight;
• indication of current feed;
• storage of quantitative dosing characteristics in memory in case of power failure;
• output of 4…20 mA current signal;
• data transfer to a remote computer via RS48 interface, ModBus RTU protocol.

Scale modifications differ in weighing limits, weight, and dimensions.

Hopper scales are powered by an AC mains supply with a voltage of 220V and a power consumption of no more than 15W.
