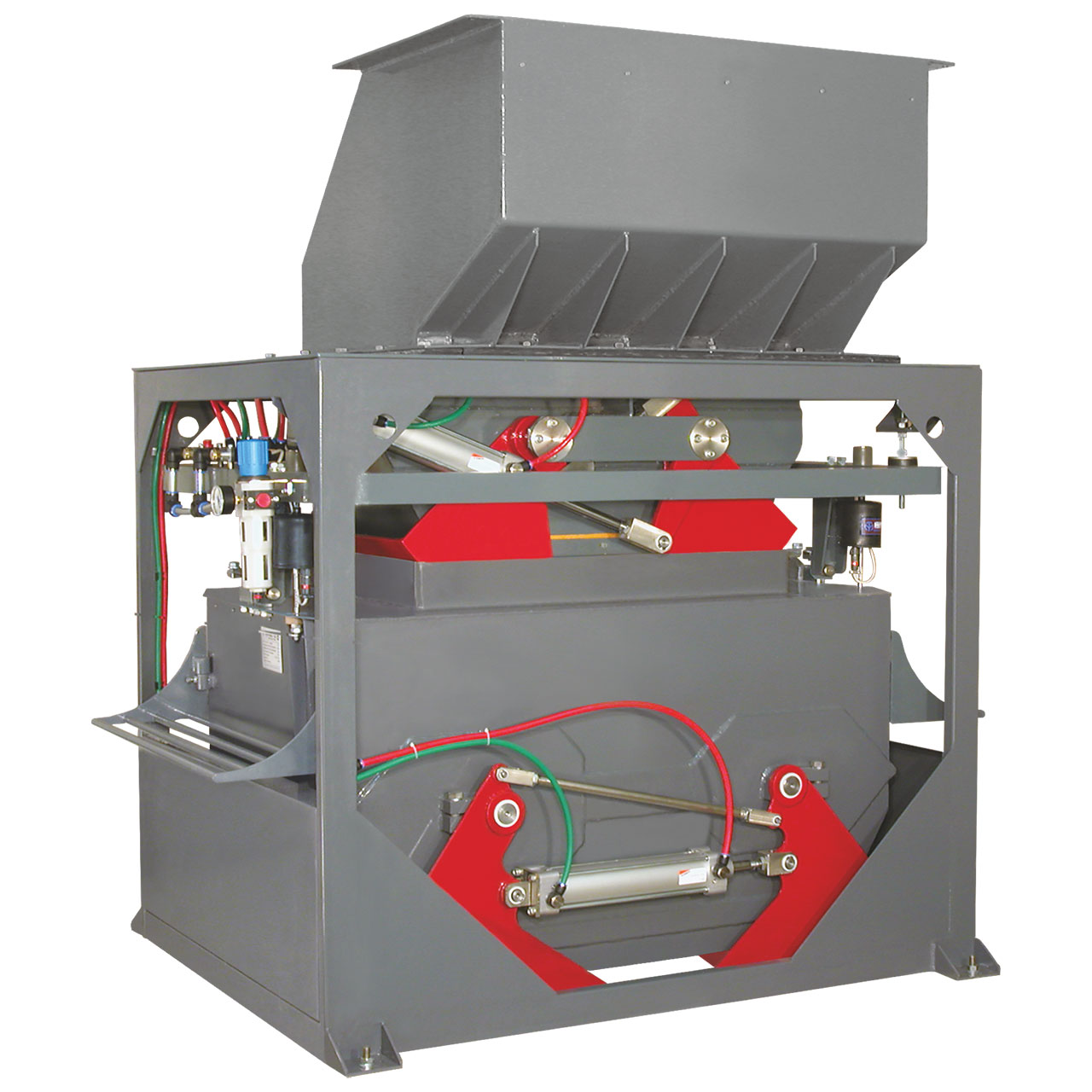

Purpose and scope of application
- Designed for weighing beets and other bulk products in a flow
- Ensuring portion weighing and total accounting of bulk products;

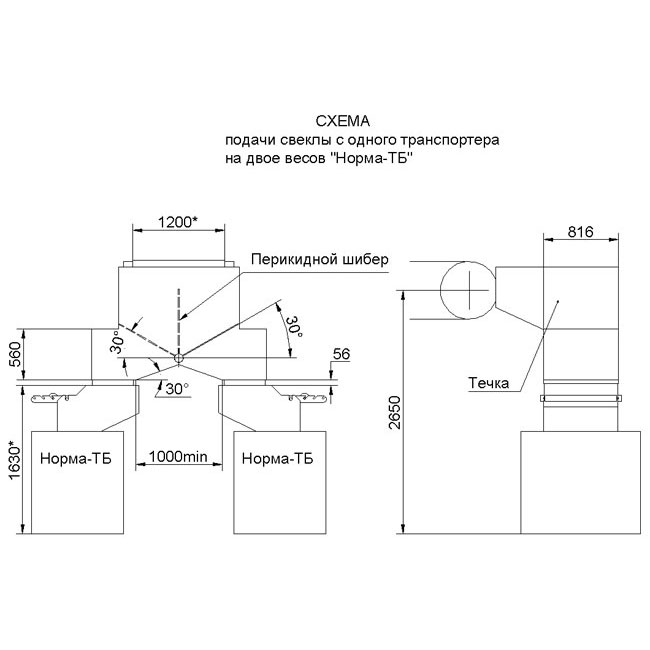

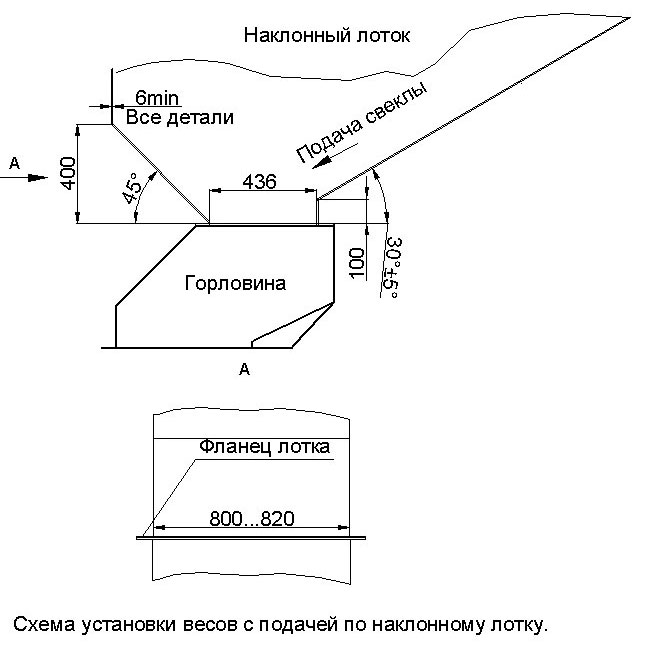

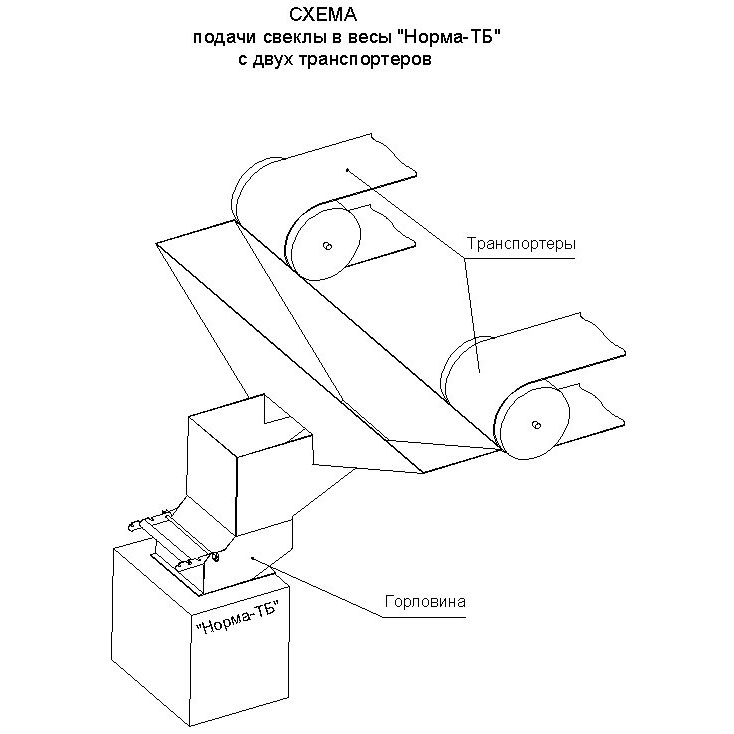

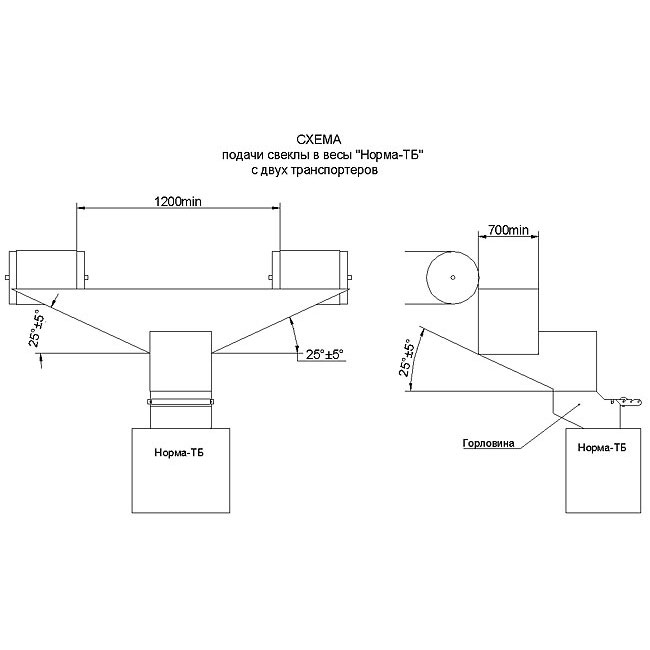

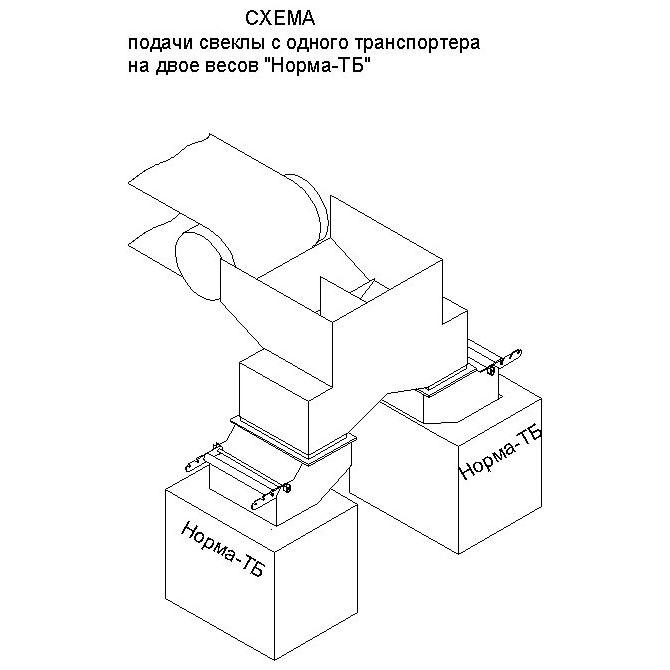

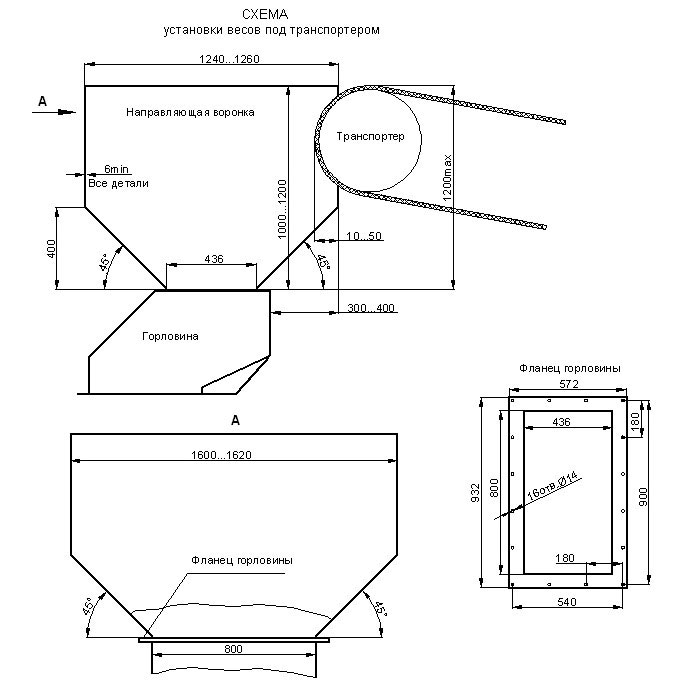

- The weight is determined during a continuous flow of product from a conveyor, elevator, or during selection from a storage hopper with the ability to adjust the feed rate;
- Selection of the required amount of product (packaging in soft containers or shipment in transport vehicles – cars, wagons, barges).

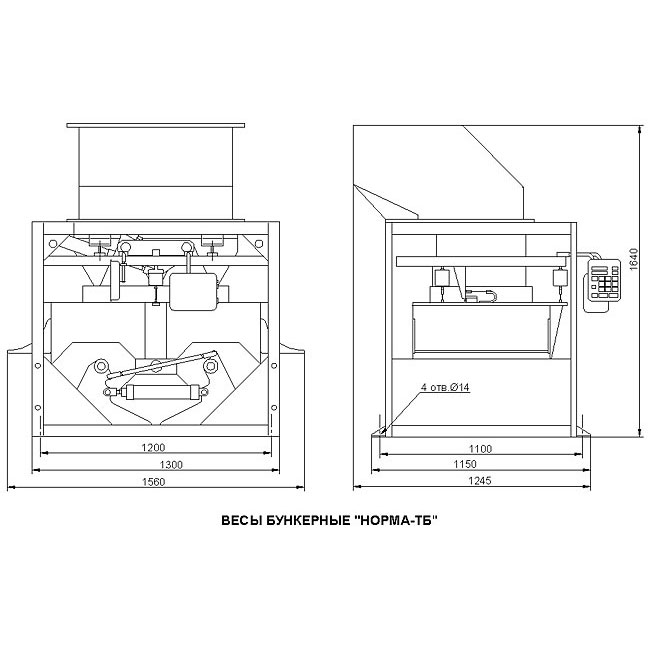

The design of the scales provides for:
- portioned weighing of the product at a set capacity;
- programmed weighing of the product dose;

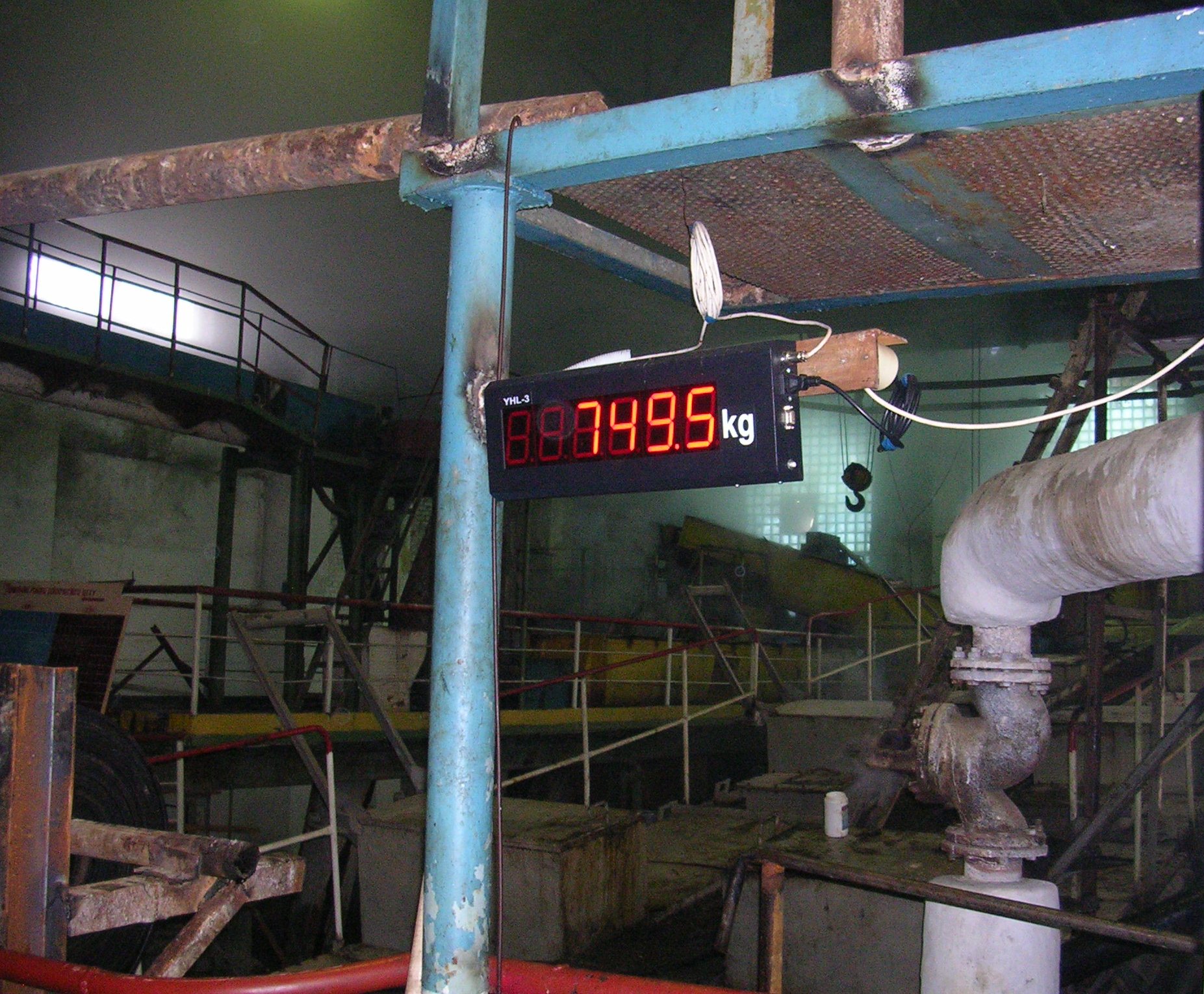

- indication of the total weight of the product that has passed through the scales since the start of operation;
- indication of the total weight of the product that has passed through the scales since a specified point in time;
- indication of direct and reverse weight counting in the “Program weighing” mode;
- indication of the number of doses in the “Program weighing” mode;
- indication of portion weight;
- indication of current feed rate;
- storage of quantitative dosing characteristics in memory in case of power failure;
- 4…20 mA current output signal;
- data transfer to a remote computer via RS48 interface, ModBus RTU protocol.

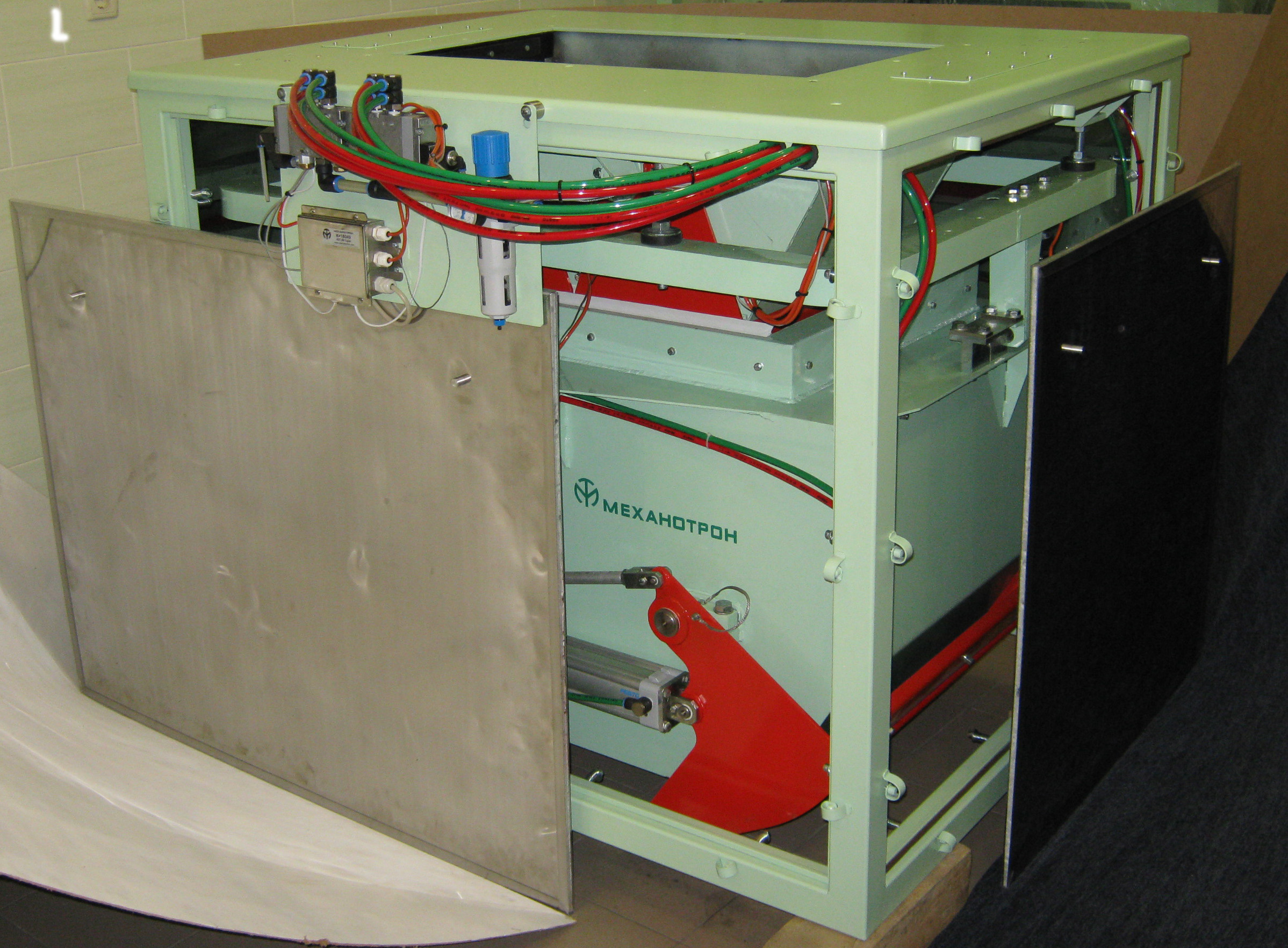

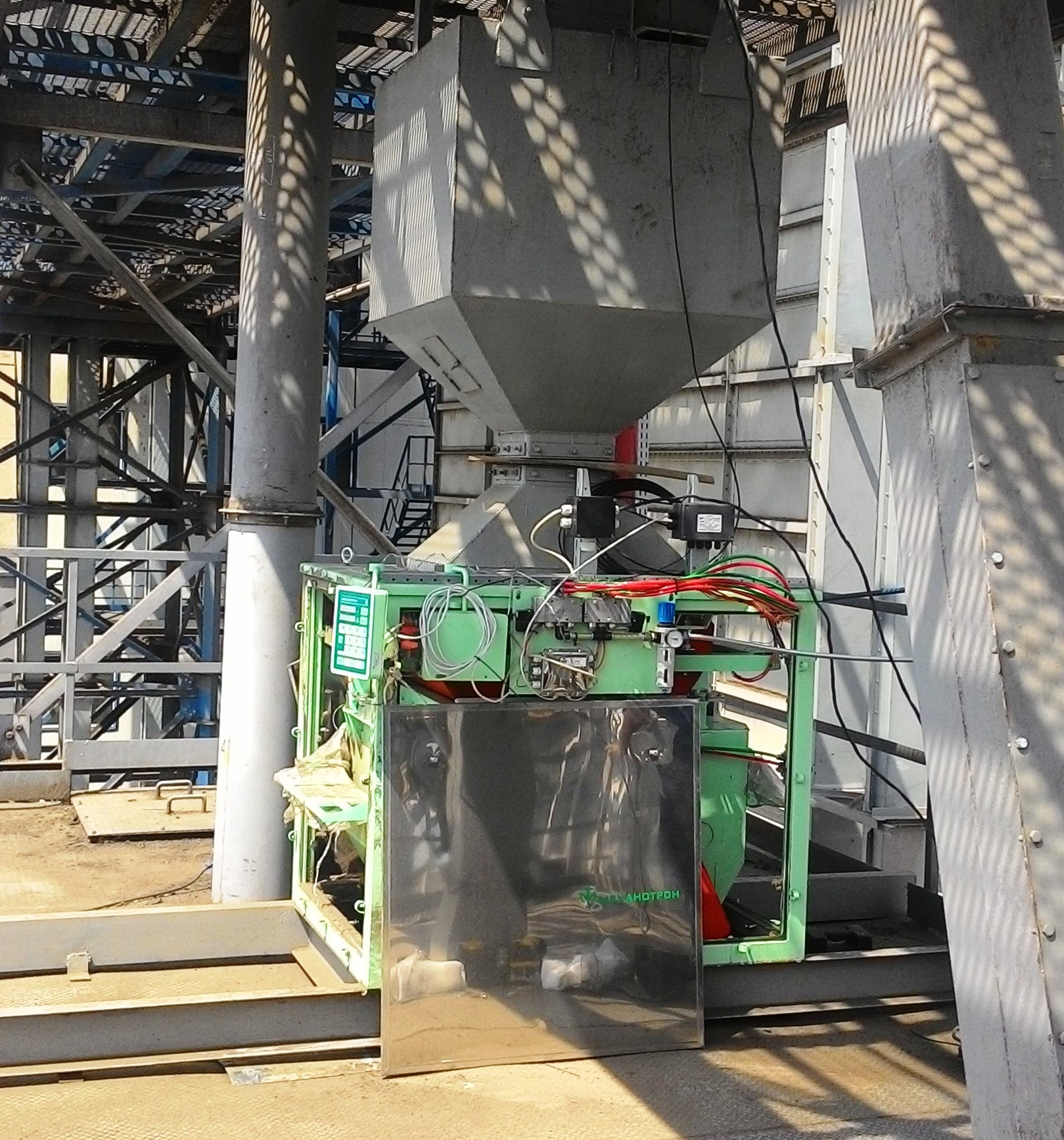

The scales can be supplied in a dust-proof version (in a frame with easily removable shields for access to the product and with windows for connecting aspiration).
The design of the scales allows for quick verification of readings using control weights.
The company carries out commissioning, warranty, and post-warranty service.
